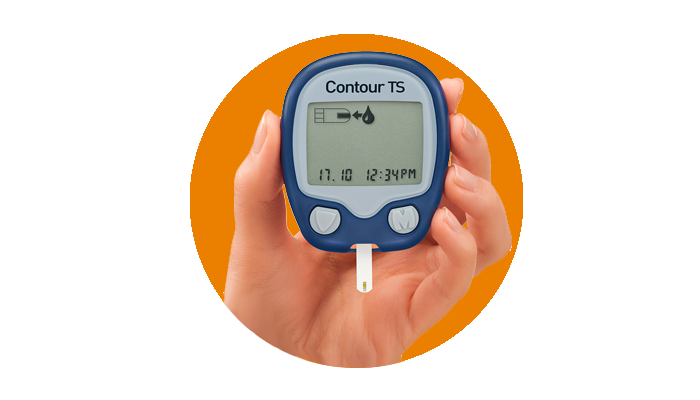

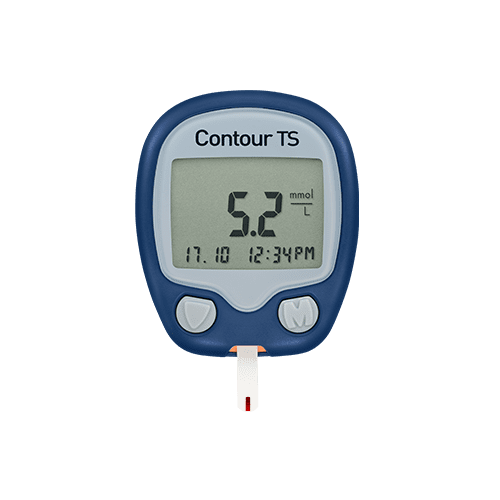

CONTOUR®TS Meter
The CONTOUR®TS meter offers true simplicity.
- Easy-to-read display
- Simple on-screen messages
- 5 second test countdown
- Easy-to-see test strip port
- Simple two button navigation
Uses CONTOUR®TS test strips
The CONTOUR®TS meter uses CONTOUR®TS test strips to deliver a truly simple result.
- Tiny 0.6 μL sample size
- No Coding technology removes the need to manually code the meter before testing, eliminating errors due to miscoding
- 24 month open pot expiry

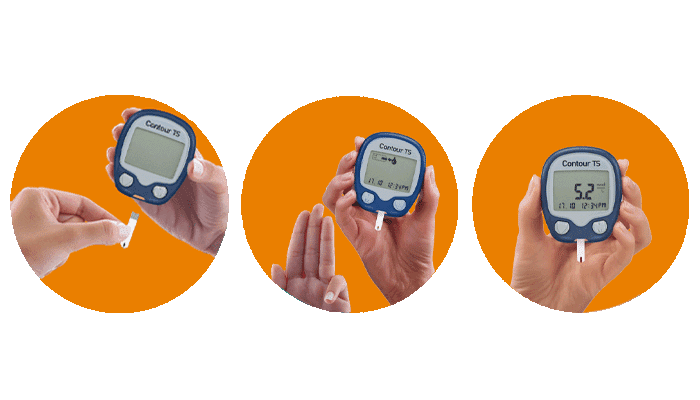

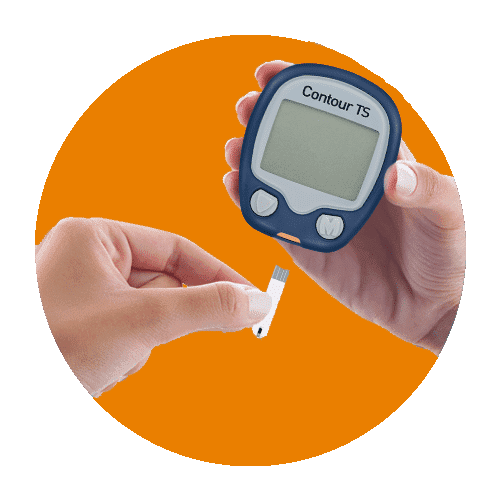

Step 1
Insert the grey end of a COTOUR®TS test strip into the mter. The meter will turn on

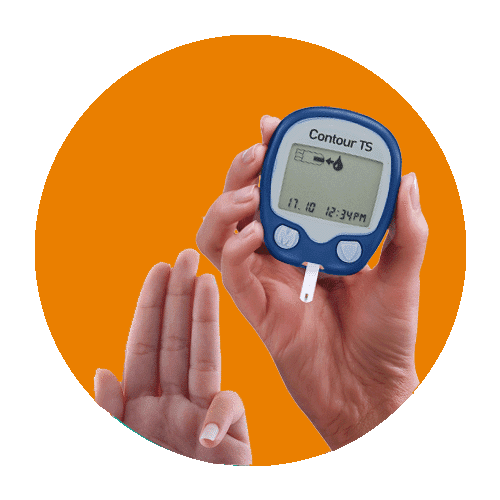

Step 2
When the apply blood screen appears, touch the test strip to the blood. Hold it until the meter beeps

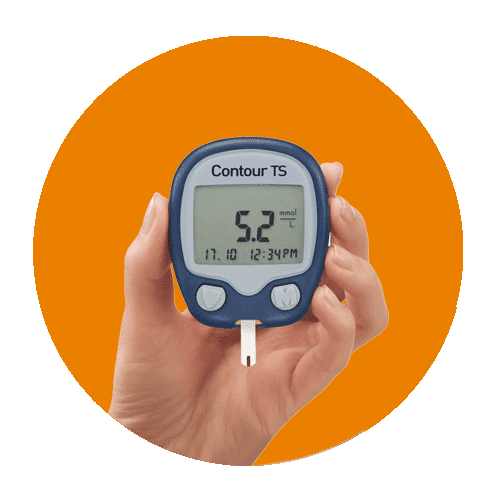

Step 3

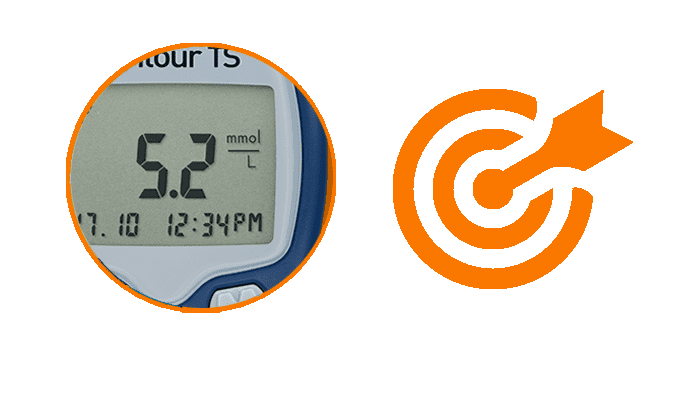

Wait 5 seconds. At the end of the countdown, your test result will be displayed. To turn the meter off, simply remove the test strip
| Technical Details |
|
|---|---|
| Cable download port? |
Yes |
| Suitable for drivers to comply with DVLA / DVA legislation? |
Yes, if 250 memory is enough space to contain all your results over a 3 month period as required by the DVLA/DVA |
| Memory Size |
250 test results |
| Countdown Time |
5 seconds |
| Sample Size |
0.6 ul |
| Ability to apply blood if first sample is insufficient? If so, how long? |
No |
| Test strips |
Contour TS test strip |
| Measuring range |
0.6 – 33.3 mmol/L |
| Haematocrit Range |
0 – 70% |
| Meter Operating Temperature Range |
5°C - 45°C |
| Meter Operating Humidity Range |
10% - 93% |
| Screen size |
39mm x 29mm |
| Dimensions |
71mm (H) x 60mm (W) x 19mm (T) |
| Weight |
56.7 grams |
| Meter Warranty |
Lifetime meter warranty excluding consumables |
